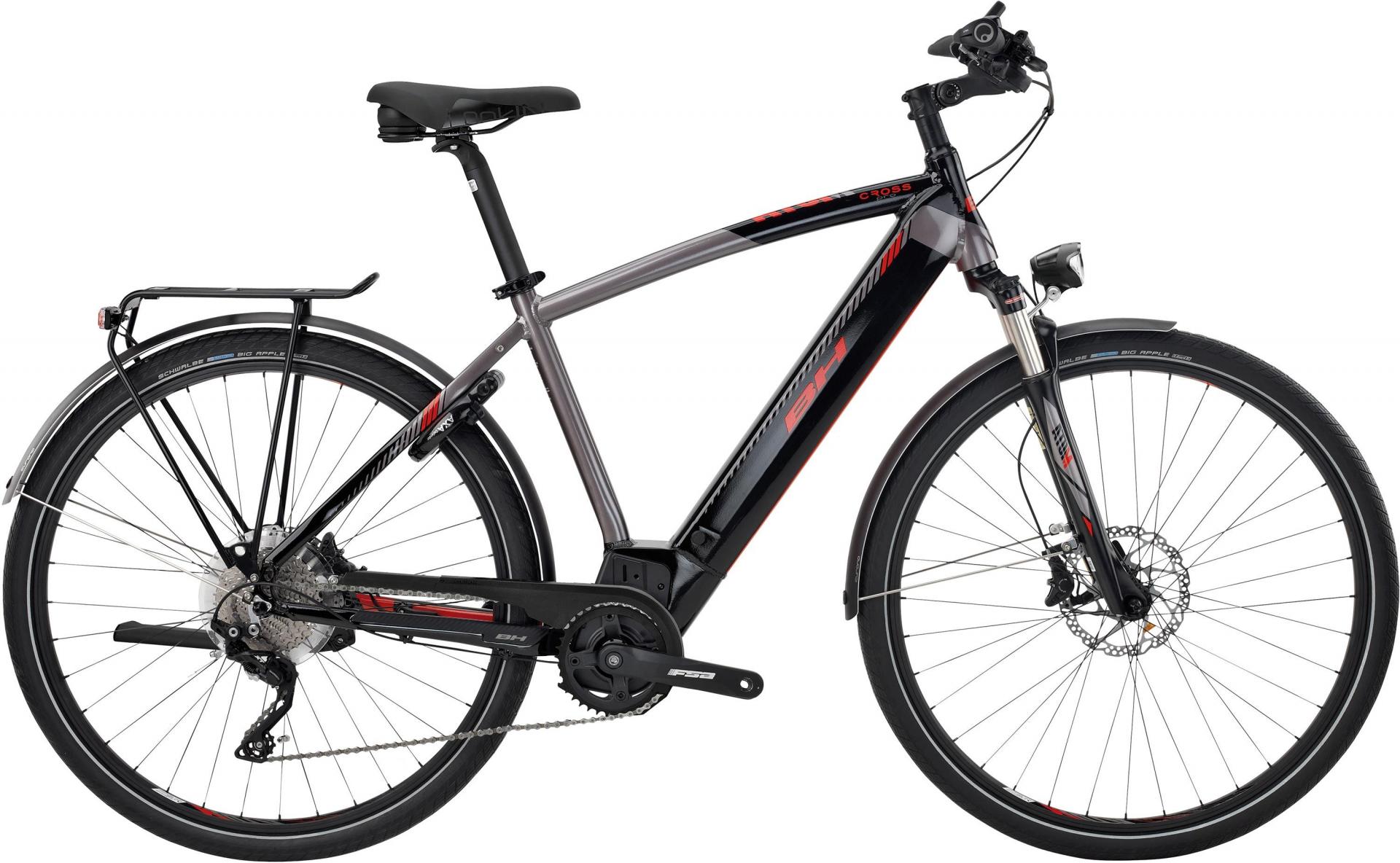

BH Bikes Atom Cross Pro 2020

Trekking e-Bike

Verfügbarkeit prüfen

Datenblatt als PDF

Additional information

im Überblick
e-Bike Typ Trekking e-Bike
Modelljahr 2020
Motorunterstützung 25
Schaltung Hersteller Shimano
Schaltungstyp Kettenschaltung
Federung Federgabel
Federung mm 63
Bremsentyp Hydraulische Scheibenbremse
Farbe schwarz, rot, grau
Rahmengröße S, M, L
Reifengröße 28''
Rahmenform Diamant
Antriebseinheit
Motor BH 1E 36V 250W
Akku 720 Wh
Display Colored Center LCD
Schaltung & Antrieb
Schaltung Shimano XT, 10-Gang
Schalthebel Shimano Deore
Schaltwerk Shimano XT, 10-Gang
Kurbelsatz FSA 38T
Kassette Shimano HG50 10sp (11-36T)
Kette Shimano HG54
Rahmen & Gabel
Rahmen Sport Alloy 28'' internal cable routing
Gabel SR Suntour NCX-D LO
Steuersatz Tapered with adaptor
Bremse
Bremsanlage Shimano MT401 4 piston 180mm / Shimano MT401 4 piston 180mm
Bremshebel Shimano MT401
Laufräder
Felgen Alloy Double Wall
Naben (V/H) Shimano /
Reifen Schwalbe Big Apple 28''x2,0
Cockpit
Lenker BH MTB Alloy Riser 740mm
Vorbau BH A-Head Adjustable
Lenkergriffe Ergon GP10
Sattelstütze Alloy 31,6
Pedale Alloy
Sattel Selle Royal Look In Atletic
Ausstattung
Frontlicht B&M Avy 40 Lux
Rücklicht B&M Toplight
Gepäckträger Racktime Light
Schutzbleche Curana Clite
Ständer Ursus Mooi
Schloss Axa Block
Sonstiges
Zulässiges Gesamtgewicht 165,0 kg
