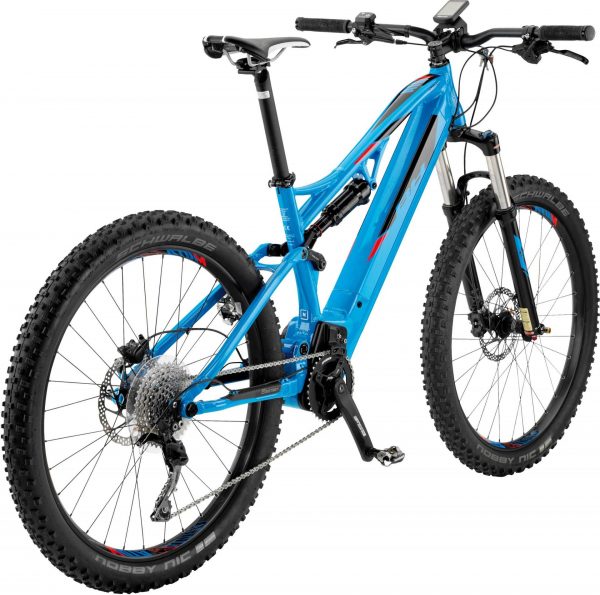

BH Bikes Atom Lynx 5.5 2020

e-Mountainbike

Verfügbarkeit prüfen

Datenblatt als PDF

Additional information

im Überblick
e-Bike Typ e-Mountainbike
Modelljahr 2020
Motorunterstützung 25
Schaltung Hersteller Shimano
Schaltungstyp Kettenschaltung
Federung Fully
Federung mm 130
Bremsentyp Hydraulische Scheibenbremse
Farbe schwarz, rot, blau
Rahmengröße M, L
Reifengröße 27,5+''
Rahmenform MTB Fully
Antriebseinheit
Motor BH 1E 36V 250W
Akku 500 Wh
Display Colored Center LCD
Schaltung & Antrieb
Schaltung Shimano Deore, 10-Gang
Schalthebel Shimano Deore
Schaltwerk Shimano Deore, 10-Gang
Kurbelsatz FSA 36T
Kassette Sunrace CSMS2 10sp (11-40T)
Kette KMC X10
Rahmen & Gabel
Rahmen 140 mm Full Suspension Alloy 27,5''+ internal cable routing
Gabel SR Suntour XCR34 Air 130mm 15QR
Steuersatz Tapered
Dämpfer Rock Shox Deluxe Debonair
Bremse
Bremsanlage Shimano MT201 180mm / Shimano MT201 180mm
Laufräder
Naben (V/H) BH /
Reifen Schwalbe Nobby Nic 27,5PLUSx2,8
Cockpit
Lenker BH MTB Alloy Riser 780mm
Vorbau BH A-Head
Lenkergriffe BH Perform w/ ringlock
Sattelstütze Alloy 31,6
Sattel Selle Royal Seta S1
Sonstiges
Zulässiges Gesamtgewicht 165 kg
