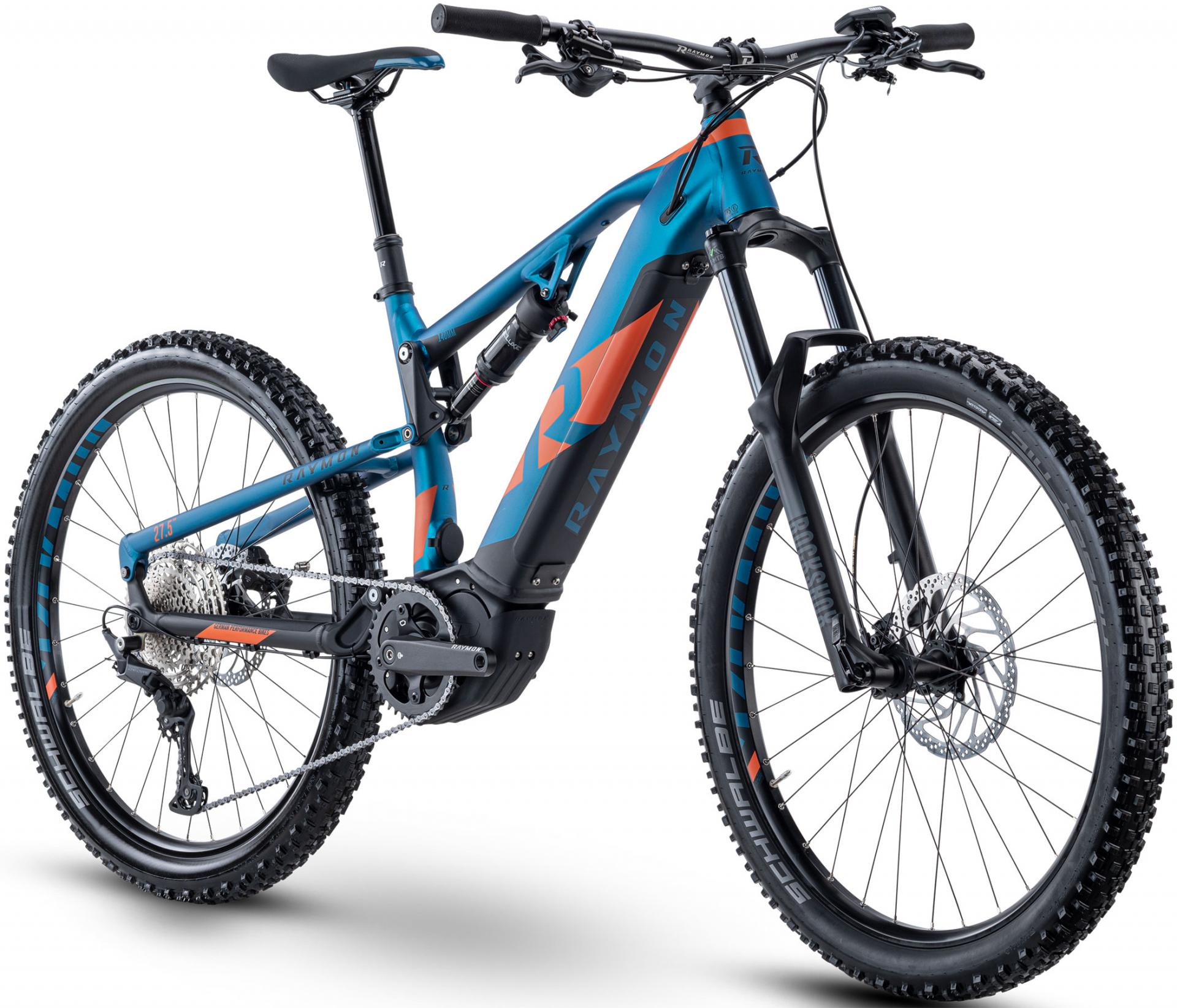

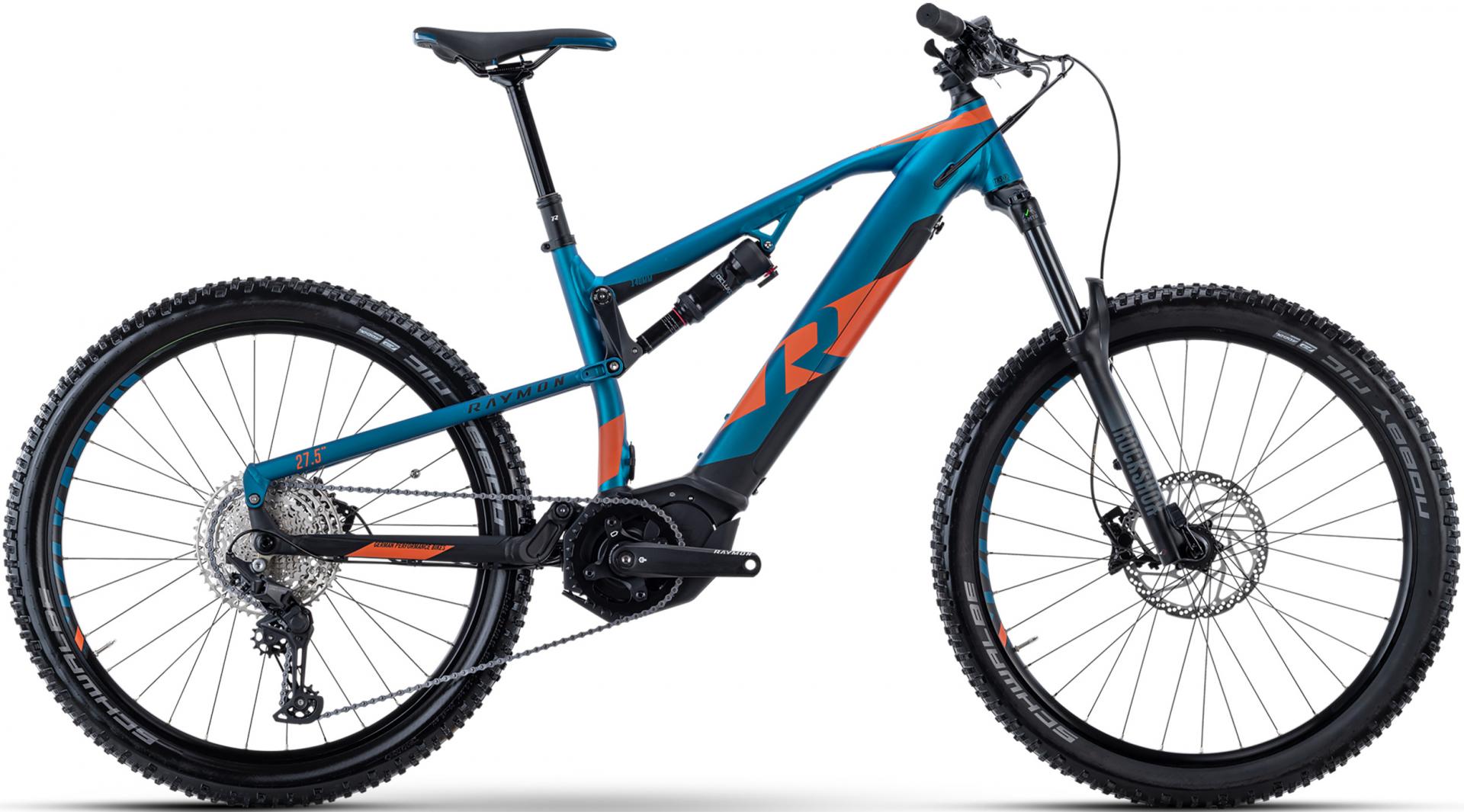

R Raymon Fullray E-Seven 7.0 2021

e-Mountainbike

R Raymon

Verfügbarkeit prüfen

Additional information

im Überblick
e-Bike Typ e-Mountainbike
Modelljahr 2021
Motorunterstützung 25
Schaltung Hersteller Shimano
Schaltungstyp Kettenschaltung
Federung Fully
Bremsentyp Hydraulische Scheibenbremse
Farbe blau, orange, türkis
Rahmengröße 40, 44, 48, 52
Reifengröße 27,5+''
Rahmenform MTB Fully
Antriebseinheit
Motor Yamaha PW-ST 36V 250W
Akku 500 Wh
Display Yamaha Display A, LCD-Display
Ladegerät Simplo, Fast Charger, 4A
Schaltung & Antrieb
Schaltung Shimano Deore RD-M5100, 11-Gang Kettenschaltung
Schalthebel Shimano Deore, SL-M5100, Rapidfire Plus, 11-Gang
Schaltwerk Shimano Deore, RD-M5100, Shadow Plus, 11-Gang
Kurbelsatz R Raymon, Alloy, 165 mm, Narrow Wide, 38T
Kassette Shimano CS-M5100, 11-51T, 11-Gang
Kette KMC e11S
Rahmen & Gabel
Rahmen 6061 Aluminium, All Mountain, integrierter Akku, 12 x 148 mm
Gabel RockShox Recon Silver RL, Motion Control, tapered, 150 mm Federweg
Dämpfer RockShox Deluxe Select+ RL, 140 mm Federweg
Bremse
Bremsanlage Shimano BR-MT420, 4-Kolben, v: 203 mm/h: 180 mm
Laufräder
Felgen Mach1-Trucky30, Eyelets, Tubeless
Naben (V/H) R Raymon DA 210F, 15 x 110 mm / R Raymon DA210R, 12 x 148 mm
Reifen Schwalbe Nobby Nic, Performance, Tubeless, 27,5 x 2,60''
Cockpit
Lenker R Raymon 31.8, 760 mm, Sweep: 9°, Rise: 15 mm
Vorbau R Raymon 31.8, 45 mm
Sattelstütze R Raymon 31.6, Dropper Post
Pedale R Raymon, Alloy
Sattel R Raymon MTB
Sonstiges
Zulässiges Gesamtgewicht 130 kg
